Effects of factors in flux-cored arc welding process on the structure and hardness of 900A grade railway track
Article Sidebar
Main Article Content
Abstract

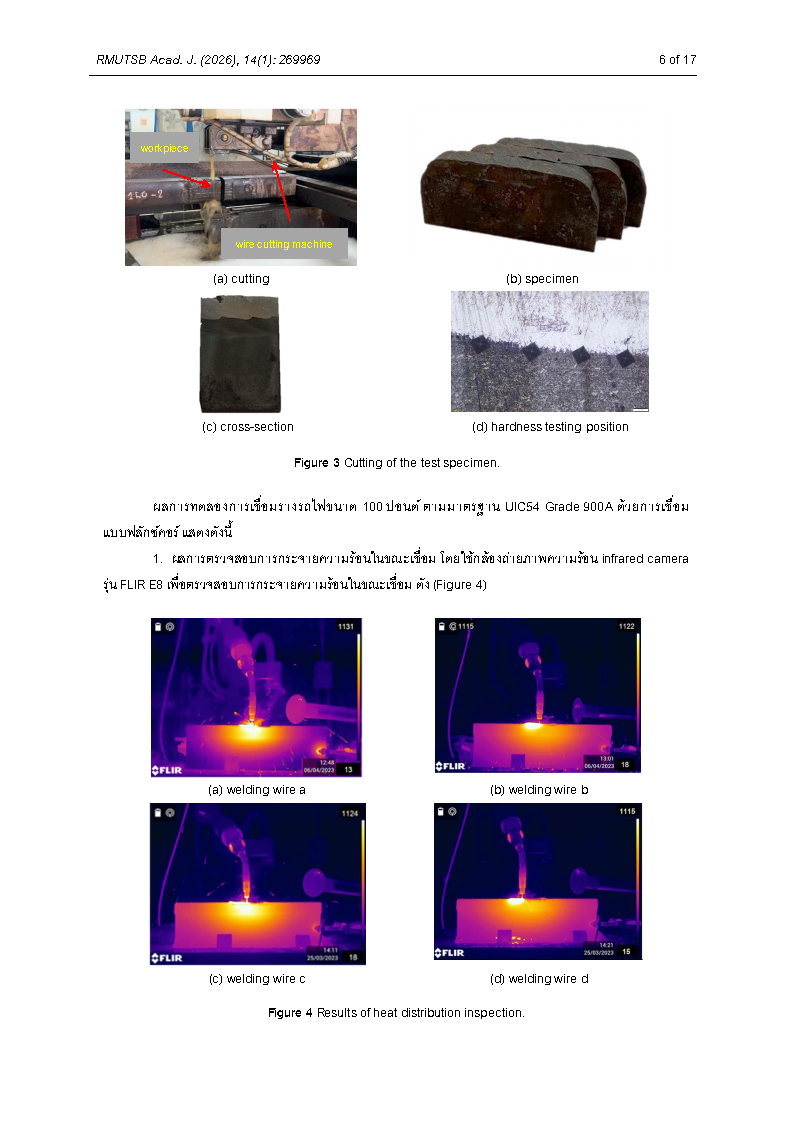

This study aimed to investigate the effects of repair welding process parameters on the structure and hardness of 900A grade railway track using the Flux-Cored Arc Welding (FCAW) process. Four types of filler wires with different carbon equivalent (CE) values 0.684, 2.233, 4.600 and 0.743% were used. Prior to welding, the rails were preheated at 150, 250, and 350°C, followed by welding with 1, 2 and 3 passes. Heat distribution was then examined using a thermal imaging camera, which revealed that heat propagated radially outward from the weld center. The structures of the repaired rail sections welded with all four filler wires consisted primarily of pearlite and ferrite. Preheating at 150 and 350°C resulted in insufficient fusion between the weld metal and the rail base metal, whereas preheating at 250°C produced better metallurgical bonding with no visible boundary separation. The hardness results indicated that lower preheat temperatures led to higher hardness values compared to higher preheat temperatures. Additionally, Regarding the effect of the number of weld layers, the hardness decreases with increasing layers, and the overall structure becomes coarser. Statistical analysis further indicated that the type of filler wire, number of weld passes, and preheat temperature had significant effects on both the structure and hardness of the welded rail steel.
Article Details
This work is licensed under a Creative Commons Attribution-NonCommercial-NoDerivatives 4.0 International License.
Published manuscript are the rights of their original owners and RMUTSB Academic Journal. The manuscript content belongs to the authors' idea, it is not the opinion of the journal's committee and not the responsibility of Rajamangala University of Technology Suvarnabhumi
References
American Welding Society. (2022). AWS D15.2/D15.2M:2022 An American National Standard, Specification for Joining Railroad Rail and Related Rail Components. American Welding Society.
Akama, M. (2025). Rolling contact Fatigue and wear of rails and wheels: A comprehensive review. Machines 2025, 13, 970. https://doi.org/10.3390/machines13100970
Ajenifuja, E., Popoola, A. P. I., & Popoola, O. (2025). Comparative analysis of structural and mechanical properties of duplex stainless steel (DSS) weldments prepared by flux core arc welding and shielded metal arc welding processes. Journal of Advanced Joining Processes, 11, 100295. https://doi.org/10.1016/j.jajp.2025.100295
Aksenova, K. V., Gromov, V. E., Ivanov, Y. F., Vashchuk, E. S., & Porfiriev, M. A. (2024). Evolution of the lamellar pearlite structure of rail steel under tension. Technical Physics, 69(1), 57-61. https://doi.org/10.1134/S1063784224700312
Andersson, B., Steyn, E., Ekh, M. & Josefson, L. (2025). Simulation-based assessment of railhead repair welding process parameters. Welding in the World, 69, 177-197. https://doi.org/10.1007/s40194-024-01837-y
Banleng, S., Lothongkham, K., & Hartung, F. (2015). Welding of rail: Technology and metallurgy. The Journal of Welding Institute of Thailand, 1(2), 37-45. https://wit.kmutnb.ac.th/myfile/Journals/journals/web-วารสารวิชาการสถาบันการเชื่อมแห่งประเทศไทย%20ปีที่%201%20ฉบับที่%202%20ปี%202558-AWT-23feb16-r2-2%20(AWT)-re.pdf
Fei, J., Zhou, G., Zhou, J., Zhou, X., Li, Z., Zuo, D., & Wu, R. (2023). Research on the effect of pearlite lamellar spacing on rolling contact wear behavior of U75V rail steel. Metals, 13(2), 237. https://doi.org/10.3390/met13020237
Fourlakidis, V., Hernando, J. C., Diószegi, A., & Holmgren, D. (2023). Relationship between thermal conductivity and tensile strength in cast irons. International Journal of Metalcasting, 17(4), 2862-2867. https://doi.org/10.1007/s40962-023-00970-6
Intawong, N., Phaoniam, R., & Wonthaisong, S. (2023). Evaluation of cold cracking susceptibility in fully pearlitic rail steel during flux cored-arc welding using implant testing. Solid State Phenomena, 378, 13-21. https://doi.org/10.4028/p-aC2Ppn
Jabtonska, M., Lewandowski, F., Chmiela, B., & Gronostajski, Z. (2023). Advanced heat treatment of pearlitic rail steel. Materials, 16(19), 6430. https://doi.org/10.3390/ma16196430
Kaewniam, W., & Kunthong, P. (2020). A study of rail weld inspection using acoustic emission (pp. 397-403). In Proceedings of the 4th KU SRC Annual Conference. Kasetsart University Si Racha Campus, Chon Buri, Thailand
Le, T. N., Vu, A. T., Le, H. C., Dong, V. H., Nguyen, V. P., & Dang, T. N. (2024). Effect of heat source on the formation of welding zone structure between carbon steel and stainless steel applied in shipbuilding. International Journal of Applied Science, Engineering and Information Technology, 14(2), 749-760. https://doi.org/10.18517/ijaseit.14.2.18828
Li, J., Hu, B., Zhao, L., Li, F., He, J., Wang, Q., & Liu, R. (2023). Influence of heat input on the microstructure and impact toughness in weld metal by high-efficiency submerged arc welding. Metals, 13(7), 1217. https://doi.org/10.3390/met13071217
Muangjunburee, P., Oo, H. Z., Abd Rahim, S. Z., & Srikarun, B. (2024). Effects of heat input and preheating temperature on the microstructure and hardness of repairing the heat-affected zone of thermite welded rail head surface. Indonesian Journal of Science & Technology, 9(2), 421-440. https://doi.org/10.17509/ijost.v9i2.71238
Poolsiri, N., Petchsang, S., Tehyo, M., Sani, S., & Muangjunburee, P. (2021). Effect of electrode selection on impact toughness in weld metal of rail steel grade 900A. Princess of Naradhiwas University Journal, 13(2), 183-198. https://li01.tci-thaijo.org/index.php/pnujr/article/view/242937
Pribadi, Y. U., Gunawan, L., & Suweca, I. W. (2024). A review of wheel wear damage in railway vehicle. Jurnal Perkeretaapian Indonesia (Indonesian Railway Journal), 8(1), 42-52. https://jurnal.ppi.ac.id/jpi/en/article/view/348
Qin, H., Tang, Y., & Liang, P. (2021). Effect of heat input on microstructure and corrosion behavior of high strength low alloy steel welds. International Journal of Electrochemical Science, 16, 210449. https://doi.org/10.20964/2021.04.07
Sangsuriya, M., & Surin, P. (2019). Study of microstructure and creep resistance of electrical welding process in spheroidal graphite cast-iron. Eau Heritage Journal Science and Technology, 13(1), 197-209. https://he01.tcithaijo.org/index.php/EAUHJSci/article/view/177206/129746
Schröpfer, D., Witte, J., Kromm, A., Barroi, A., Kannengiesser, T., & Nolze, G. (2024). Stresses in repair welding of high-strength steels Part 2: Heat control and stress optimization. Welding in the World, 68, 2537-2551. https://doi.org/10.1007/s40194-024-01731-7
Shaikh, M. S., Shajib, M. S., Kader, M. A., Mondal, D., & Islam, M. A. (2025). Effect of preheating on microstructure and mechanical properties in mild steel arc weld joints. International Journal of Automotive and Mechanical Engineering, 22(1), 12133-12145. https://doi.org/10.15282/ijame.22.1.2025.14.0931
Srijampan, W., Tongsri, R., Yotkaew, T., Torsangthum, N., Morakotjinda, M., Krataitong, R., & Wiengmoon, A. (2016). Relationship between microstructure and mechanical property of sintered Fe-Cr-Mo steels. Naresuan University Journal: Science and Technology, 24(2), 175-182. https://ph03.tci-thaijo.org/index.php/ahstr/article/view/1914
Thawatchai, P., & Anek, N. (2025). Factors that cause Rail Broken or Cracked with standard rail defect code number UIC712R. In Proceedings of the 28th National Convention on Civil Engineering. Phuket, Thailand.
Tressia, G., Alves, L. H. D., Goldenstein, H., Grandini, C. R., Mohtadi-Bonab, M. A., & Masoumi, M. (2024). Enhancing wear resistance and mechanical properties of eutectoid pearlitic steel through low-temperature annealing: Microstructural transformations and performance implications in railway applications. Materials Research, 27, e20240295. https://doi.org/10.1590/1980-5373-MR-2024-0295
Wang, S., Wen, B., Ren, D., Ding, Y., Wen, Z., Dong, D., & Tao, G. (2023). Analysis of the causes of severe side wear of the high rail on metro curves by numerical simulation and field investigation. Proceedings of the Institution of Mechanical Engineers, Part F: Journal of Rail and Rapid Transit, 238(4), 381-393. https://doi.org/10.1177/09544097231193274
Wang, L., Jiang, Y., Hu, C., Wan, X., & Li, G. (2025). Effect of heat input on microstructure evolution and fracture toughness of interlayer heat affected zone in ultra-high strength steel. Journal of Materials Research and Technology, 39, 5189-5198. https://doi.org/10.1016/j.jmrt.2025.10.201
Zani, N., Mazzù, A., Solazzi, L., & Petrogalli, C. (2024). Examining wear mechanisms in railway wheel steels: Experimental insights and predictive mapping. Lubricants, 12(3), 93. https://doi.org/10.3390/lubricants12030093
Zaw O, H., & Muangjunburee, P. (2023). Improving microstructure and hardness of softening area at HAZ of thermite welding on rail running surface. Materials Today Communications, 34, 105485. https://doi.org/10.1016/j.mtcomm.2023.105485
